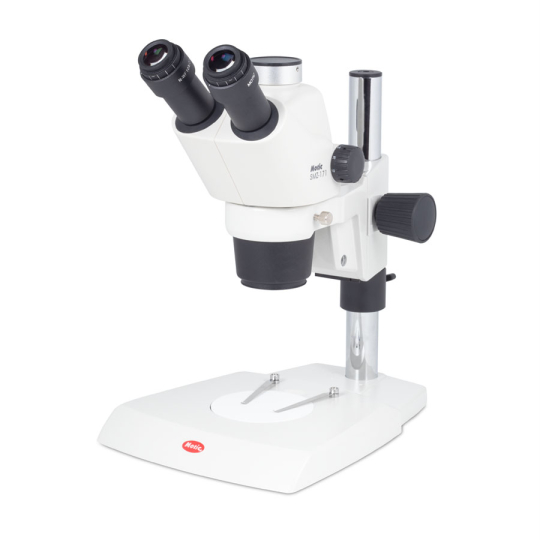

SMZ-171-TP
A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.
Specifications| Model | SMZ-171-TP |
|---|
| Observation tube | Trinocular head |
|---|
| Optical system | Greenough |
|---|
| Inclination | 45º inclined |
|---|
| Trinocular light split | Fixed 50:50 |
|---|
| Interpupillary distance | 52-75mm |
|---|
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
|---|
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
|---|
| Objectives system | Zoom, ratio 6.7:1 |
|---|
| Objectives | 0.75X~5X |
|---|
| Working distance | 110mm |
|---|
| Stand type | Pole type stand without illumination |
|---|
| Head holder | For Ø32mm column and Ø76mm head |
|---|
| Focus mechanism | Coarse focusing system with tension adjustment |
|---|
| Focusing stroke | 49mm |
|---|
| Accessories included | Dust cover, black/white stage plate |
|---|
| Dimensions LxWxH | 303x239x370mm |
|---|
| Base | 303x239mm |
|---|
| Column/Arm | Height 290mm, Ø32mm |
|---|
| Weight Net | 5.7kg |
|---|
| Contrast techniques |
|---|
| Standard contrast technique | Brightfield |
|---|
For dark field, polarizing, or fluorescence accessories, contact us!
