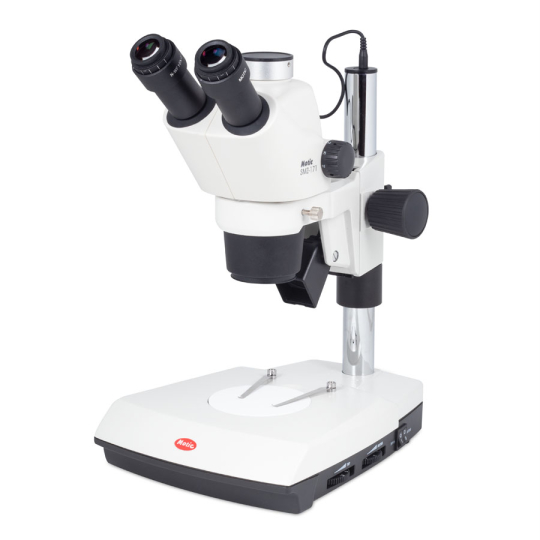

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software.
Specifications| Model | SMZ-171-TLED |
|---|
| Observation tube | Trinocular head |
|---|
| Optical system | Greenough |
|---|
| Inclination | 45º inclined |
|---|
| Trinocular light split | Fixed 50:50 |
|---|
| Interpupillary distance | 52-75mm |
|---|
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
|---|
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
|---|
| Objectives system | Zoom, ratio 6.7:1 |
|---|
| Objectives | 0.75X~5X |
|---|
| Working distance | 110mm |
|---|
| Stand type | Pole type stand with transmitted illumination |
|---|
| Head holder | For Ø32mm column and &Oslas |
|---|
