    SMZ-171-BP

    Artikelnr: 726.1100200600758
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

    SMZ-171-BP

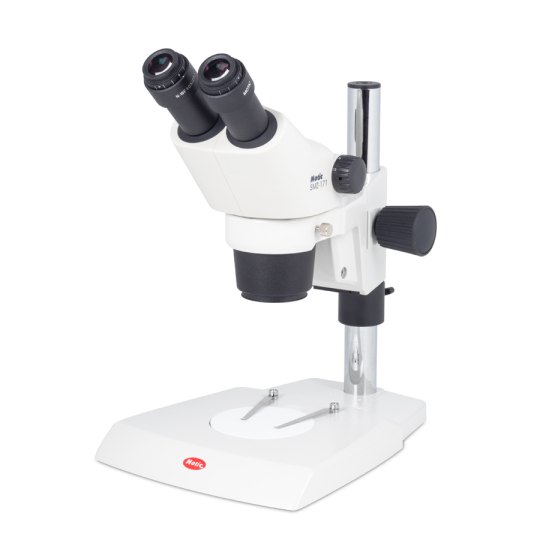

    A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification for measurements through eyepiece reticles. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.

    ModelSMZ-171-BP
    Observation tubeBinocular head
    Optical systemGreenough
    Inclination45º inclined
    Interpupillary distance52-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/23mm with diopter adjustment
    Objectives systemZoom, ratio 6.7:1
    Objectives0.75X~5X
    Working distance110mm
    Stand typePole type stand without illumination
    Head holderFor Ø32mm column and Ø76mm head
    Focus mechanismCoarse focusing system with tension adjustment
    Focusing stroke49mm
    Accessories includedDust cover, black/white stage plate
    Dimensions LxWxH303x239x370mm
    Base303x239mm
    Column/ArmHeight 290mm, Ø32mm
    Weight Net5.45kg
    Contrast techniques
    Standard contrast techniqueBrightfield



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
