    SMZ-171-BLED

    Artikelnr: 726.1100200600754
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

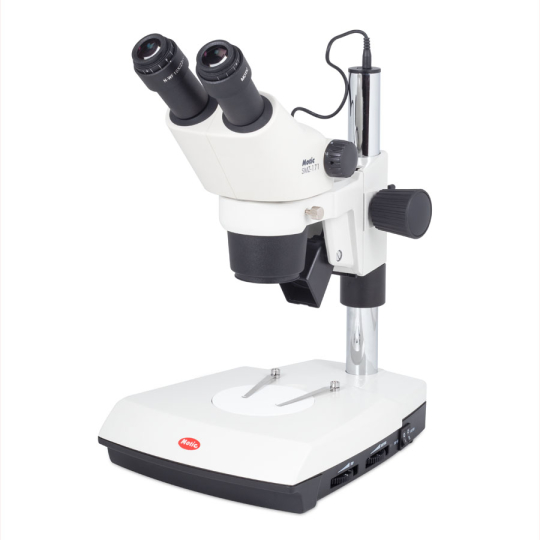

    SMZ-171-BLED

    A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. Students and lab technicians benefit from the package solution with integrated transmitted/incident LED illumination, ready to start.

    ModelSMZ-171-BLED
    Observation tubeBinocular head
    Optical systemGreenough
    Inclination45º inclined
    Interpupillary distance52-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/23mm with diopter adjustment
    Objectives systemZoom, ratio 6.7:1
    Objectives0.75X~5X
    Working distance110mm
    Stand typePole type stand with transmitted illumination
    Head holderFor Ø32mm column and Ø76mm head
    Focus mechanismCoarse focusing system with tension adjustment
    Focusing stroke49mm
    Incident illuminationLED 3W with intensity control
    Transmitted illuminationLED 3W with reflector and intensity control
    Illumination featuresTransmitted light with tilting reflector for oblique illumination
    TransformerExternal
    Power supply100-240V (CE)
    Accessories includedDust cover, black/white and frosted stage plates
    Dimensions LxWxH303x239x405mm
    Base303x239mm
    Column/ArmHeight 232mm, Ø32mm
    Weight Net5.95kg
    Contrast techniques
    Standard contrast techniqueBrightfield
    PolarizationOptional add-on
    DarkfieldOptional add-on



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
