Panthera E2 Binocular

Tillverkare: MOTICEUROPE, S.L. / S.L.U.

Artikelnr: 726.1100104601111

Lagerstatus: Beställningsvara

Kontakta oss för pris

Antal:

i h

Overview
Kontakta oss

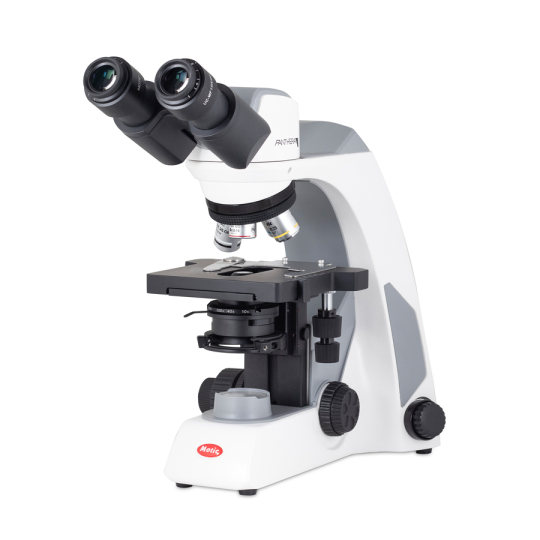

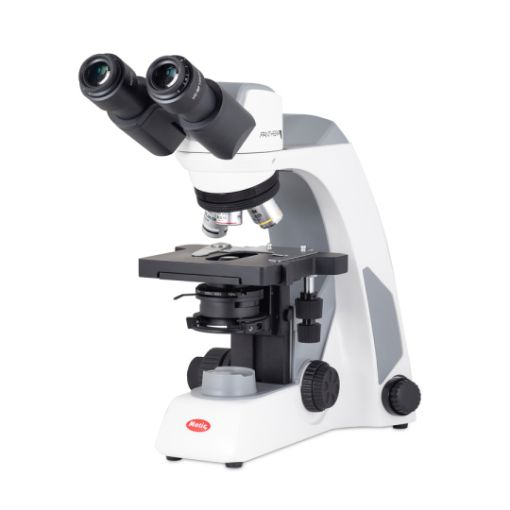

Panthera E2 Binocular

Panthera E2 Binocular is the newest generation of transmitted light microscopes. The robust and reliable Binocular microscope, yet ready for any ambitious work in educational environments and small life science labs. Sections from plants, native transparent samples, but also medical specimen are displayed by our CCIS^© Plan Ultra Contrast objectives with an impressive image quality. The Panthera E2 features a reversed 4-fold nosepiece with a rackless x/y stage. Illumination is provided by an 1W LED light source in a Fixed Köhler setup.

Contrast techniques
Model	Panthera E2 Binocular
Observation tube	Binocular head, Siedentopf type, 360º swiveling
Optical system	Colour Corrected Infinity Optical System (CCIS®)
Inclination	25º inclined, 360º rotating (storage saving), 360º swivelling
Interpupillary distance	48-75mm
Diopter adjustment	On both eyepieces, +/- 5 diopter
Eyepieces	Widefield UC-WF10X/20mm with diopter adjustment
Nosepiece	Reversed quadruple
Objective classification	CCIS® UC Plan Achromatic (Pb free), DIN
Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
Objective mounting thread	W 4/5"x1/36" (RMS standard)
Stand type	Upright
Stage	Mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size	140x135mm
Travel range X&Y	75x40mm
Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Diaphragm	Iris diaphragm
Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision	2µm
Focusing stroke	25mm
Upper limit stop	Upper limit stop preset but adjustable
Filter holder	On top of the illuminator
Transmitted illumination	Fixed Köhler LED 1W with intensity control
Illumination features	Nosepiece LED light intensity indicator
Transformer	Internal
Power supply	110-240V (CE), USB 2.0 for battery pack
Other features	USB 2.0 for external camera power
Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml)
Dimensions LxWxH	282x210x395mm
Weight Net	7.5kg
Standard contrast technique	Brightfield
Phase contrast	Optional slider
Polarization	Optional add-on
Darkfield	Optional slider

For dark field, polarizing, or fluorescence accessories, contact us!
