    Panthera C2 Trinocular

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100104601141
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

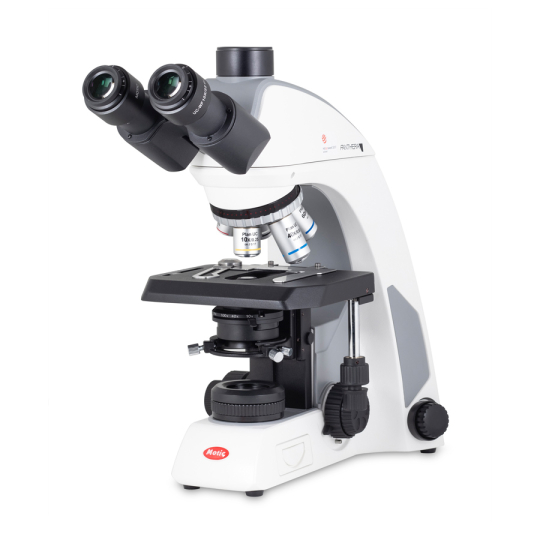

    Panthera C2 Trinocular

    A new world-class level cased in a revolutionary technical future-orientated solution. Panthera C2 Trinocular microscope for Life Sciences: your instrument for demanding applications. This models with a complete series of new UC Plan Achromats performing a 22mm Field of View makes outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Köhler setup. The Motic LightTracer system with coded nosepiece, a built-in Low-Energy mode (Auto ON/OFF) and an LED feedback indicator helps to smoothen your workflow.

    ModelPanthera C2 Trinocular
    Observation tubeTrinocular head, Siedentopf type, 360º swiveling
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination25º inclined, 360º swivelling
    Trinocular light splitFixed 50:50
    Interpupillary distance48-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield UC-WF10X/22mm with diopter adjustment
    NosepieceReversed quintuple, coded
    Objective classificationCCIS® UC Plan Achromatic (Pb free), DIN
    Objectives4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeUpright
    StageCompact mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size185x145mm
    Travel range X&Y75x50mm
    CondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision2µm
    Focusing stroke25mm
    Upper limit stopUpper limit stop preset but adjustable
    Filter holderOn top of the illuminator with fixing cap
    Transmitted illuminationKöhler LED 3W & Quartz halogen 6V/30W with intensity control
    Illumination interchangeabilityHalogen/LED and LED color temperature interchangeability
    Illumination featuresMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
    TransformerInternal
    Power supply110-240V (CE)
    Other featuresUSB 2.0 for external camera power
    Accessories includedDust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module
    Dimensions LxWxH282x210x396mm
    Weight Net8.4kg
    Contrast techniques
    Standard contrast techniqueBrightfield
    Phase contrastOptional slider/turret
    PolarizationOptional add-on
    DarkfieldOptional slider/turret
    FluorescenceOptional LED



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
