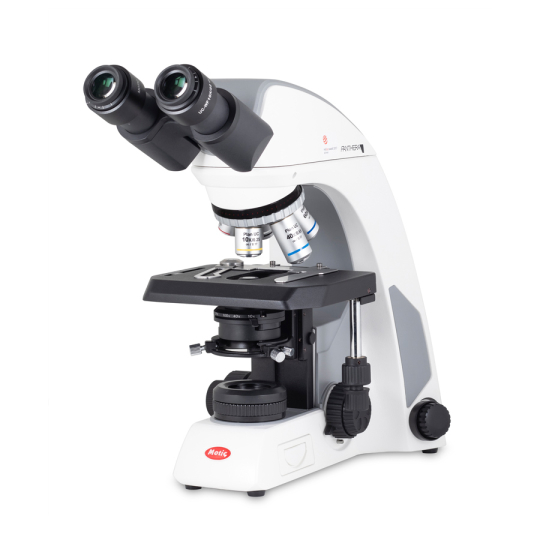

Panthera C2 Binocular

A new world-class level cased in a revolutionary technical future-orientated solution. Panthera C2 Binocular microscope for Life Sciences: your instrument for demanding applications. This model with a complete series of new UC Plan Achromats and 22mm Field of View makes outstanding performance easy. The patented rackless stage carries a unique dual-slide holder for one-hand operation. Illumination is provided by a 30W Halogen light source, interchangeable with 3W LEDs, in a Full Köhler setup. The Motic LightTracer with coded nosepiece, a built-in Low-Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimize your daily workflow.

Specifications
Contrast techniques
Model	Panthera C2 Binocular
Observation tube	Binocular head, Siedentopf type, 360º swiveling
Optical system	Colour Corrected Infinity Optical System (CCIS®)
Inclination	25º inclined, 360º swivelling
Interpupillary distance	48-75mm
Diopter adjustment	On both eyepieces, +/- 5 diopter
Eyepieces	Widefield UC-WF10X/22mm with diopter adjustment
Nosepiece	Reversed quintuple, coded
Objective classification	CCIS® UC Plan Achromatic (Pb free), DIN
Objectives	4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
Objective mounting thread	W 4/5"x1/36" (RMS standard)
Stand type	Upright
Stage	Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
Stage size	185x145mm
Travel range X&Y	75x50mm
Condenser	Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
Diaphragm	Iris diaphragm
Focus mechanism	Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision	2µm
Focusing stroke	25mm
Upper limit stop	Upper limit stop preset but adjustable
Filter holder	On top of the illuminator with fixing cap
Transmitted illumination	Köhler LED 3W & Quartz halogen 6V/30W with intensity control
Illumination interchangeability	Halogen/LED and LED color temperature interchangeability
Illumination features	Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
Transformer	Internal
Power supply	110-240V (CE)
Other features	USB 2.0 for external camera power
Accessories included	Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module
Dimensions LxWxH	282x210x394mm
Weight Net	8.4kg
Standard contrast technique	Brightfield
Phase contrast	Optional slider/turret
Polarization	Optional add-on
Darkfield	Optional slider/turret
Fluorescence	Optional LED

For dark field, polarizing, or fluorescence accessories, contact us!
