    Moticam X5 Plus

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100600101322
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

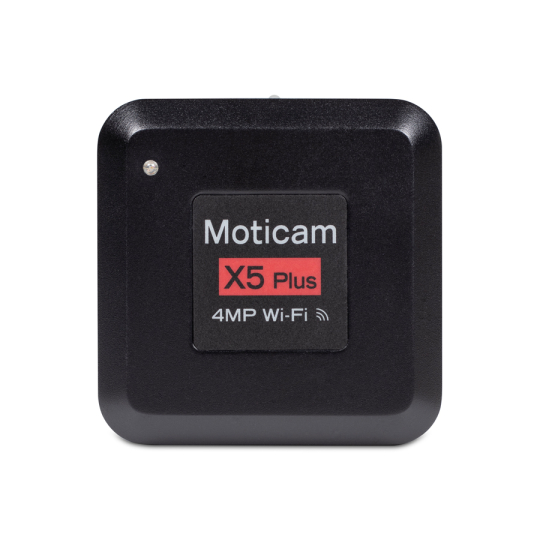

    Moticam X5 Plus

    Moticam X5 Plus transfers live images up to 30 fps and captures images at 4.0MP: a compact Wi-Fi camera to share live images with up to 6 devices at the same time. A powerful high-res solution to turn your microscope into a Wi-Fi station. Simply logon with your tablet or smartphone and get ready to capture, edit and save your images with the free MotiConnect App. Use your computer with Motic Images Plus 3.1 Software for further image processing.

    ModelMoticam X5 Plus
    Sensor typeCMOS
    Sensor size1/3"
    Imaging area6.25 mm (diagonal)
    Capture resolution info4MP (2560x1440 pixels)
    Live display mode through Wi-Fi1280x720, 1920x1080 pixels (Full HD)
    Live display mode through Ethernet1280x720, 1920x1080 pixels (Full HD)
    Pixel size2.0x2.0μm
    Scan modeProgressive
    Shutter modeRolling shutter
    Data transferWi-Fi (2.4 & 5 GHz), Ethernet
    Max. frames per second (fps)1920x1080 @ 30 fps, 1280x720 @ 30 fps (depending on Wi-Fi strength) (*)
    Exposure time0,03 msec to 0,03 sec
    Operating temperatureFrom -10 to +50 Degrees Celsius non condensing
    Max. signal to noise ratio38.3dB
    Dynamic range64.6dB
    Sensitivity1.9V/Lux-sec (550nm)
    Support deviceUniversal Web browser (HTML5)
    Minimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mountC-Mount
    Focusable lens12mm
    SoftwareMotic Images Plus 3.1 for Windows 10, MAC OSX10.9 or higher and MotiConnect App for iOS and Android
    FunctionsStill image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
    Power supply12V (External Power supply)
    Package includesCS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro-tube, Motic Images Plus 3.1, universal power supply 100V-240V (CE)
    Other featuresUSB 5V for power supply of external devices
    Notes(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
    *
    *
    *
