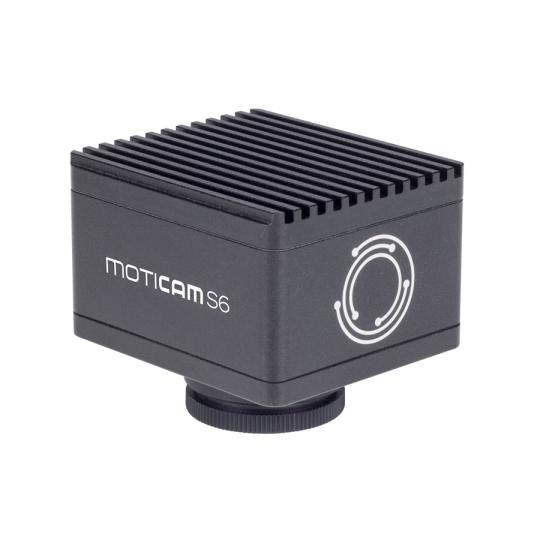

| Model | Moticam S6 |
|---|
| Sensor type | sCMOS |
|---|
| Sensor size | 1/1.8" |
|---|
| Imaging area | 8.92mm (Diagonal) |
|---|
| Capture resolution info | 6MP |
|---|
| Live display mode through USB | 3072x2048, 1536x1024 pixels |
|---|
| Pixel size | 2.4x2.4μm |
|---|
| Scan mode | Progressive |
|---|
| Shutter mode | Rolling shutter |
|---|
| Data transfer | USB 3.1 |
|---|
| Max. frames per second (fps) | 3072x2048 @ 30fps 1536x1024 @ 50fps (*) |
|---|
| Exposure time | 16 μsec to 2 sec |
|---|
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
|---|
| Max. signal to noise ratio | 0.15mV @1/30 sec |
|---|
| Sensitivity | 425mV(G) @ 1/30 sec |
|---|
| Support device | TWAIN, SDK and DirectShow Driver |
|---|
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
|---|
| Lens mount | C-Mount |
|---|
| Software | Motic Images Plus 3.0 for Windows 10, MAC OSX10.9, Linux UBUNTU1604 or higher |
|---|
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
|---|
| Power supply | 5V (From USB Port) |
|---|
| Package includes | CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 |
|---|
| Other features | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
|---|
