    Moticam 4000X

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100600101641
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

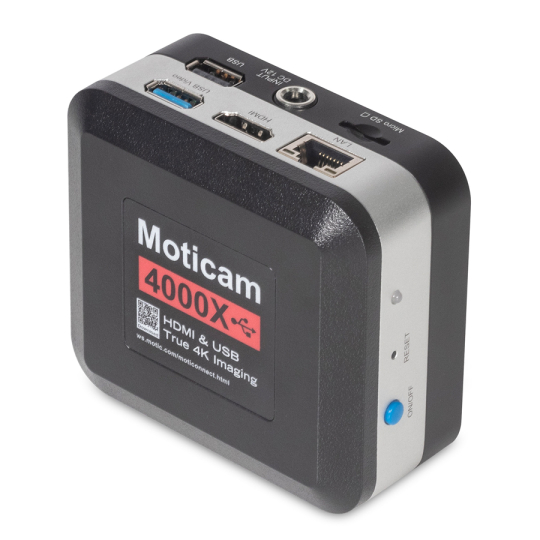

    Moticam 4000X

    The Moticam 4000X camera boasts on-board software, enabling you to operate it seamlessly with just a mouse and a screen - no computer needed. For added convenience, it offers both USB and Wi-Fi connectivity, allowing for flexible integration with your existing systems. Use the Wi-Fi connectivity to connect effortlessly with mobile devices such as tablets and smartphones, and the USB to connect to a computer for advanced image analysis using the Motic Images Plus software. Experience real-time, live measurements with exceptional clarity and detail, and elevate your microscopy work to new heights.

    ModelMoticam 4000X
    Sensor typeCMOS
    Sensor size1/2.8"
    Imaging area6.46 mm (diagonal)
    Capture resolution info8MP (3840x2160 pixels)
    Image capture resolution (on SD-card)8MP (3840x2160 pixels)
    Video capture resolution (on SD-card)1080P (1920x1080 pixels)
    Live display mode through USB4K (3840x2160 pixels)
    Live display mode through Wi-Fi4K (3840x2160 pixels)
    Live display mode through Ethernet4K (3840x2160 pixels)
    Live display mode through HDMI4K (3840x2160 pixels)
    Pixel size1.45x1.45μm
    Scan modeProgressive
    Shutter modeRolling shutter
    Data transferHDMI ,USB ,Wi-fi, Ethernet, MicroSD card
    Max. frames per second (fps)HDMI: 4K (3840x2160) @ 30 fps USB3.0:1920x1080@30fps, 3840X2160@25fps WIFI: 1920x1080@25fps, 3840X2160@12fps
    Exposure time0.03ms ~ 1000ms
    Operating temperatureFrom -10 to +50 Degrees Celsius non condensing
    Sensitivity300mV with 1/30s
    SlotMicro SD Card
    ButtonsOn/Off
    Support deviceTWAIN and Direct Show Driver
    Supported OSWindows 7/8/10, MAC OSX, Linux or higher
    Minimum computer requirementsCore2, 2.8GHz, RAM memory 8GB
    Lens mountC-Mount
    Focusable lens12mm
    SoftwareOn-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher and MotiConnect App for iOS and Android
    FunctionsIncluding exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function
    Power supply12V (External Power supply)
    Package includesCS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1
    Other featuresUSB port for connecting a mouse to enable software control
    Notes(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
    *
    *
    *
