    Moticam 1080N

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100600101651
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

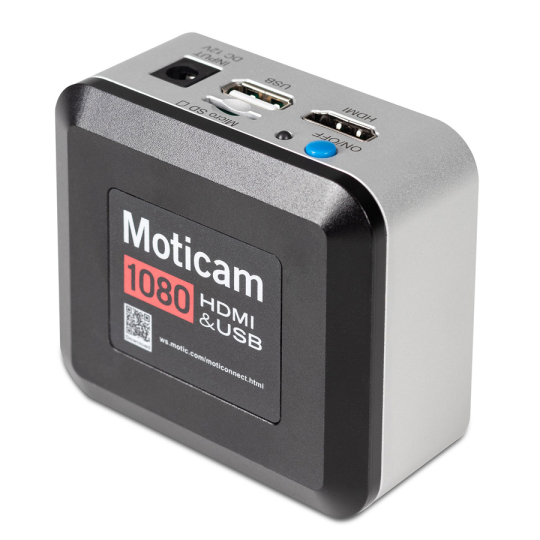

    Moticam 1080N

    The Moticam 1080N, designed for ease of use and the ability to output fast live images in Full HD (1920x1080px), displays your live images on a screen by connecting the camera through the HDMI port. Make live measurements, annotations, image adjustments and more, thanks to its on-board software usable directly with a USB mouse connected to the camera. With its integrated micro SD card slot, saving images won´t require a computer, making organizing your images and videos much easier. The USB port allows you to connect the camera to a computer, even simultaneously, and use the Motic Images Plus software.

    ModelMoticam 1080N
    Sensor typeCMOS IMX307
    Sensor size1/2.8"
    Imaging area5.346x3.003mm
    Capture resolution info6MP (3264X1836)
    Image capture resolution (on SD-card)6MP (3264X1836)
    Video capture resolution (on SD-card)Full HD (1920x1080 pixels)
    Live display mode through USBFull HD (1920x1080 pixels)
    Live display mode through HDMIFull HD (1920x1080 pixels)
    Pixel size2.9x2.9μm
    Scan modeProgressive
    Data transferHDMI (1080p), USB 2.0
    Max. frames per second (fps)USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps (*)
    Exposure time0.06ms ~ 40ms with Auto Exposure mode (0.06ms ~ 999ms with Manual Exposure mode)
    Operating temperatureFrom -10 to +60 Degrees Celsius non condensing
    Max. signal to noise ratio40dB
    Dynamic range71dB
    Sensitivity0.51V (Typical at 1/30 sec)
    SlotMicro-SD (max 128GB)
    ButtonsOn/Off
    Support deviceTWAIN and Direct Show Driver
    Supported OSWindows 7/8/10, MAC OSX, Linux or higher
    Minimum computer requirements2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mountC-Mount
    Focusable lens12mm
    SoftwareOn Board Software and Motic Images Plus 3.1 and MAC OSX or higher
    FunctionsStill image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery, Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode, saturation, contrast, gamma, sharpness, denoise, user settings, system’s time setting, language (English, Chinese and Japanese), format Micro-SD card.
    Power supply12V (External Power supply)
    Package includesCS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, macro tube, Motic Images Plus 3.1, universal power supply
    Other featuresUSB port for connecting a mouse to enable software control
    Notes(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
    *
    *
    *
