    BA410E Trinocular Sextuple 50W

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100100402982
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

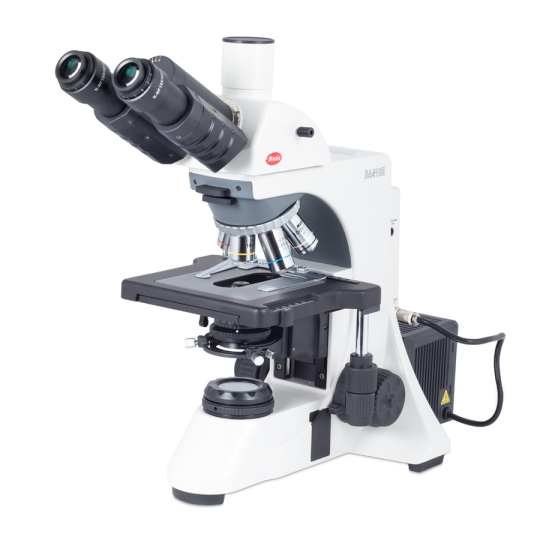

    BA410E Trinocular Sextuple 50W

    Trinocular research microscope for diverse questions from life sciences, but also from material sciences. The standard EC-H Plan Achromat objectives can be replaced by Fluorite and Apochromatic lenses for maximum optical performance. Demanding users benefit from the system’s flexibility of the BA410E construction kit, ready to configure a personal microscope for individual requirements.

    ModelBA410E Trinocular Sextuple 50W
    Observation tubeTrinocular head, Siedentopf type
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination30º inclined, 360º rotating
    Trinocular light split100:0/20:80 (optional 100:0/0:100)
    Interpupillary distance50-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/22mm with diopter adjustment
    NosepieceReversed sextuple
    Objective classificationCCIS® EC-H Plan Achromatic, DIN
    Objectives4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeUpright
    StageMechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder
    Stage size180x170mm
    Travel range X&Y80x55mm
    CondenserFocusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision1µm
    Focusing stroke27mm
    Upper limit stopUpper limit stop preset but adjustable
    Filter holderOn top of the illuminator with fixing cap
    Transmitted illuminationKoehler Quartz halogen 12V/50W with intensity control
    Illumination interchangeabilityQuartz halogen 12V/50W or LED 3W (LED module not included)
    Illumination featuresAuto-OFF and Light Memory function. External lamphouse.
    TransformerInternal
    Power supply100-240V (CE)
    Accessories includedDust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest
    Dimensions LxWxH550x242x435mm
    Weight Net14.2kg
    Contrast techniques
    Standard contrast techniqueBrightfield
    Phase contrastOptional slider/turret
    PolarizationOptional sliders/add on
    DarkfieldOptional slider/turret
    FluorescenceOptional



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
