    BA310E LED Trinocular

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100100402443
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

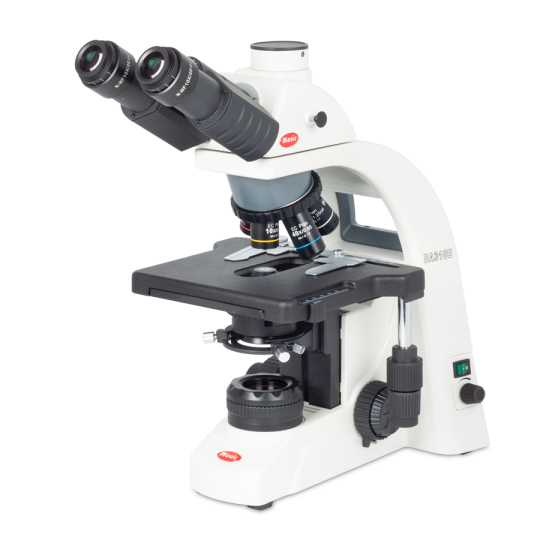

    BA310E Trinocular

    Trinocular microscope for advanced work in life sciences. Prepared for digital documentation of fully corrected images (CCIS© Infinity optics) of sections, smears and dispersions. Lab technicians benefit from the Full-Köhler illumination, ready to work on unstained or weakly-stained structures from biology and medicine.

    ModelBA310E Trinocular
    Observation tubeTrinocular head, Siedentopf type, 360º swiveling
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination30º inclined, 360º rotating
    Trinocular light split100:0/20:80 or 100:0/0:100
    Interpupillary distance48-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/20mm with diopter adjustment
    NosepieceReversed quintuple
    Objective classificationCCIS® EC Plan Achromatic, DIN
    Objectives4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeUpright
    StageMechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
    Stage size180x170mm
    Travel range X&Y80x55mm
    CondenserFocusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision2µm
    Focusing stroke20mm
    Upper limit stopUpper limit stop preset but adjustable
    Filter holderOn top of the illuminator with fixing cap
    Transmitted illuminationKöhler Quartz halogen 6V/30W with intensity control
    Illumination interchangeabilityQuartz halogen 6V/30W or LED 3W (LED module not included)
    TransformerInternal
    Power supply100-240V (CE)
    Accessories includedDust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
    Dimensions LxWxH400x220x400mm
    Weight Net8.6kg
    Contrast techniques
    Standard contrast techniqueBrightfield
    Phase contrastOptional slider/turret
    PolarizationOptional add-on
    DarkfieldOptional slider/turret
    FluorescenceOptional LED



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
