    BA310 LED Binocular Phase

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1200100401483
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

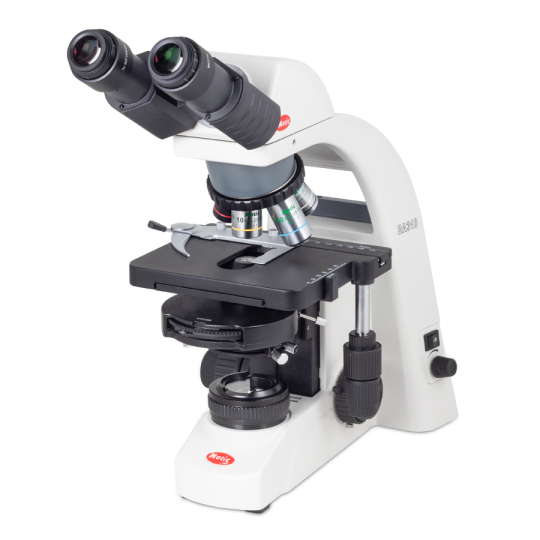

    BA310 LED Binocular Phase

    Binocular microscope for advanced work in life sciences. Sections, smears and dispersions can be checked by CCIS© Plan Achromat objectives. Lab technicians benefit from the Full-Köhler illumination with a 3W LED light source, ready to work on unstained or weakly-stained structures from biology and medicine.

    ModelBA310 LED Binocular Phase
    Observation tubeBinocular head, Siedentopf type, 360º swiveling
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination30º inclined, 360º rotating
    Interpupillary distance48-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/20mm with diopter adjustment
    NosepieceReversed quintuple
    Objective classificationCCIS® EC Plan Achromatic, EC-H Plan Phase, DIN
    Objectives4X/0.10 (WD 15.9mm), PH10X/0.25 (WD 17.4mm), PH40X/0.65 (WD 0.5mm), PH100X/1.25 (WD 0.15mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeUpright
    StageMechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holder
    Stage size175x140mm
    Travel range X&Y76x50mm
    CondenserPhase contrast 5 position turret condenser N.A. 0.90 (BF, DF, Ph1, Ph2, Ph3)
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision2µm
    Focusing stroke20mm
    Upper limit stopUpper limit stop preset but adjustable
    Filter holderOn top of the illuminator
    Transmitted illuminationKöhler LED 3W with intensity control
    TransformerInternal
    Power supply100-240V (CE)
    Accessories includedDust cover, power cord, Allen key, Immersion oil (5ml), thumb screw, Phase centering telescope, centering keys
    Dimensions LxWxH400x220x400mm
    Weight Net8.6kg
    Contrast techniques
    Standard contrast techniqueBrightfield, phase contrast
    Phase contrastTurret
    PolarizationOptional add-on
    DarkfieldTurret



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
