    BA210E LED Trinocular

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100100403761
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

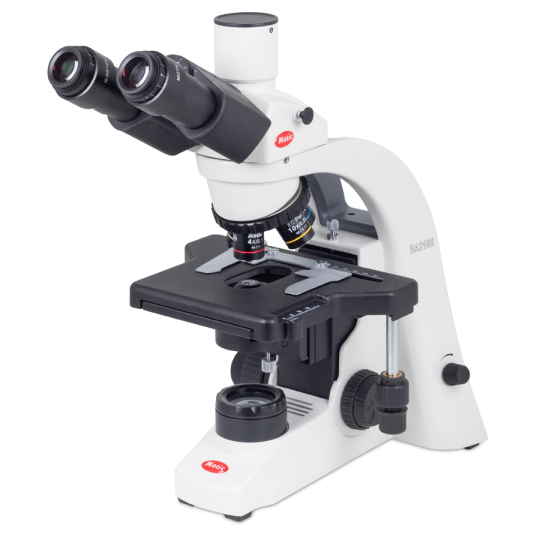

    BA210E Trinocular

    Trinocular microscope for basic work in life sciences of biology and medicine. Sections, smears and native transparent samples are displayed by high-quality Plan Achromat objectives. Students and lab technician benefit from the pre-installed setup of optics and illumination, ready to start.

    ModelBA210E Trinocular
    Observation tubeTrinocular head, Siedentopf type
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination30º inclined, 360º rotating
    Trinocular light split100:0/20:80
    Interpupillary distance55-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/20mm with diopter adjustment
    NosepieceReversed quadruple
    Objective classificationCCIS® EC Plan Achromatic, DIN
    Objectives4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeUpright
    StageMechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size150x150mm
    Travel range X&Y80x30mm
    CondenserFocusable Abbe condenser N.A. 1.25 with slot for contrast sliders
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision2µm
    Focusing stroke20mm
    Upper limit stopUpper limit stop preset but adjustable
    Filter holderOn top of the illuminator with fixing cap
    Transmitted illuminationLED 3W & Quartz halogen 6V/30W with intensity control
    Illumination interchangeabilityQuartz halogen 6V/30W or LED 3W
    TransformerInternal
    Power supply100-240V (CE)
    Accessories includedDust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
    Dimensions LxWxH360x220x395mm
    Weight Net7.2kg
    Contrast techniques
    Standard contrast techniqueBrightfield
    Phase contrastOptional slider
    PolarizationOptional add-on
    DarkfieldOptional slider
    FluorescenceOptional LED



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
