    AE2000 Trinocular

    Tillverkare: MOTICEUROPE, S.L. / S.L.U.
    Artikelnr: 726.1100103800054
    Lagerstatus: Beställningsvara
    Kontakta oss för pris
    i h

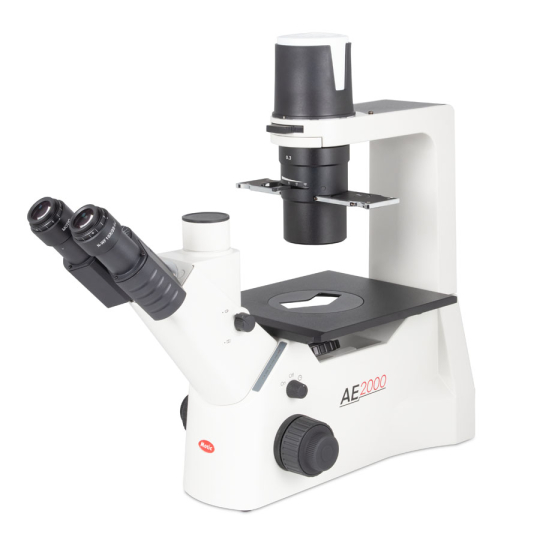

    AE2000 Trinocular

    Trinocular Inverted live cell microscope for routine microbiology. The pre-defined optical setup with LWD CCIS© Phase objectives is ready for the inspection of diverse native samples in cell culture flasks. Lab technicians profit from the convincing Phase contrast concept, while the Fixed-Köhler illumination with interchangeable light source (HAL/LED) and Auto ON/OFF function enables a fast throughput of samples.

    ModelAE2000 Trinocular
    Observation tubeTrinocular head, Siedentopf type, 360º swiveling
    Optical systemColour Corrected Infinity Optical System (CCIS®)
    Inclination45º inclined
    Trinocular light split100:0/20:80
    Interpupillary distance48-75mm
    Diopter adjustmentOn both eyepieces, +/- 5 diopter
    EyepiecesWidefield N-WF10X/20mm with diopter adjustment
    NosepieceLeft side facing quadruple
    Objective classificationCCIS® Plan Achromatic, DIN
    Objectives4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)
    Objective mounting threadW 4/5"x1/36" (RMS standard)
    Stand typeInverted
    StagePlain stage with metal and glass stage inserts
    Stage size200x239mm
    CondenserELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
    DiaphragmIris diaphragm
    Focus mechanismCoaxial coarse and fine focusing system with tension adjustment
    Fine focus precision2µm
    Focusing stroke8mm
    Free working distanceWorking distance without condenser 184mm
    Transmitted illuminationQuartz Halogen 6V/30W with intensity control
    Illumination interchangeabilityQuartz halogen 6V/30W or LED 3W
    Illumination featuresAuto on/off
    TransformerExternal
    Power supply100-240V (CE)
    Accessories includedDust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
    Dimensions LxWxH556x218x496mm
    Weight Net12.2kg
    Contrast techniques
    Standard contrast techniqueBrightfield, phase contrast
    Phase contrastSlider



    For dark field, polarizing, or fluorescence accessories, contact us!

    *
    *
    *
